Quick and easy guide on how to install a pistol grip to your CZ Scorpion

Replacing factory grip from CZ Scorpion for an aftermarket grip is quite a common move.

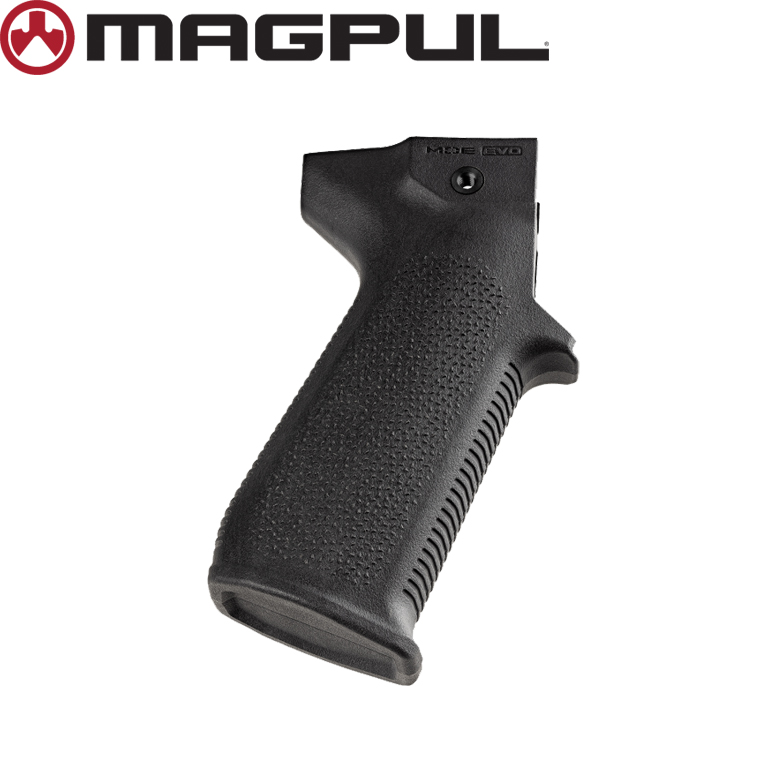

CZ Scorpion Evo pistol gripTo make things easier, here you can find step by step guide on how to do so.

You can find below also the installation video from our youtube channel.

Installation guide for pistol grip

  1. Make sure you have an empty chamber and leave the bolt open
  2. Press out the retaining pin from the left side
  3. Remove the lower receiver
  4. Screw out the grip screw with 3mm Allen key [7/64 inch] and slide out the grip
  5. Slide in the new grip and screw the grip screw back in [hand tightening strength shall be enough, no need to use too much force; you can also reapply threadlocker]
  6. Put the lower receiver back into its position and push back the retaining pin.

Installation video guide
