This red dot uses the Shield RMSc footprint standard.

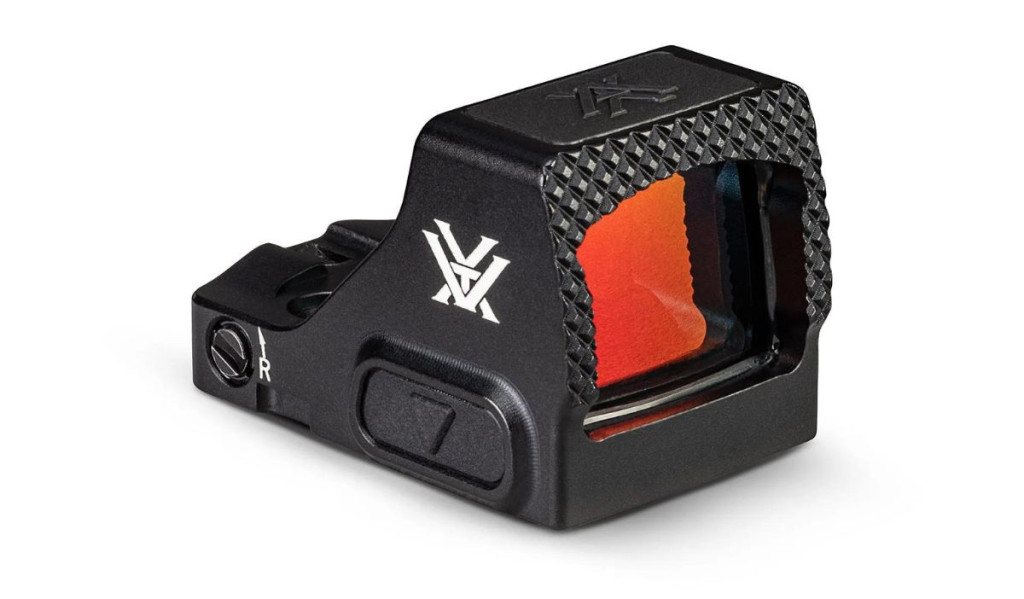

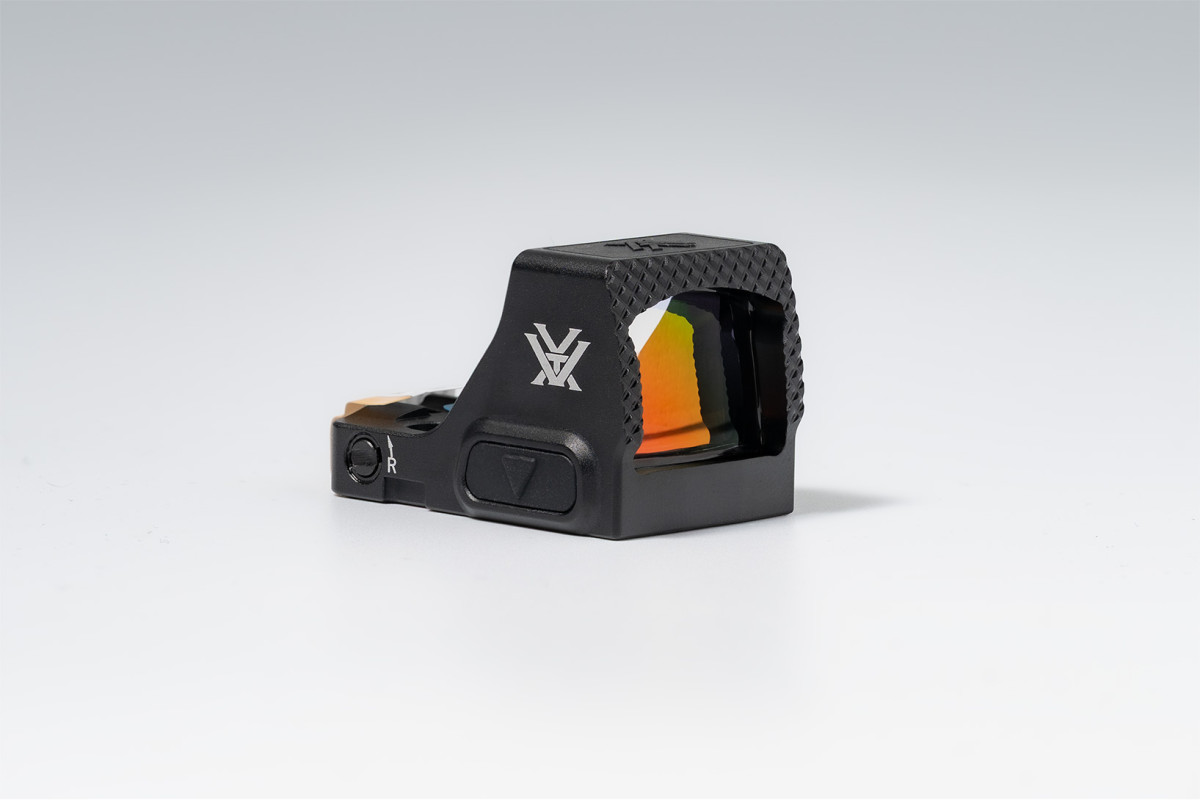

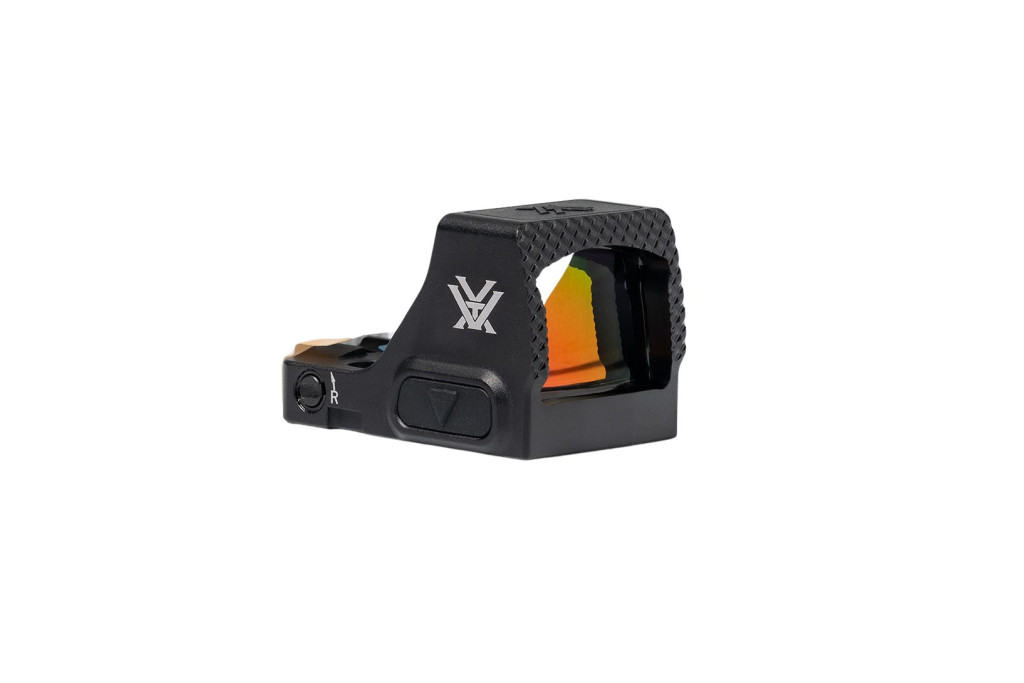

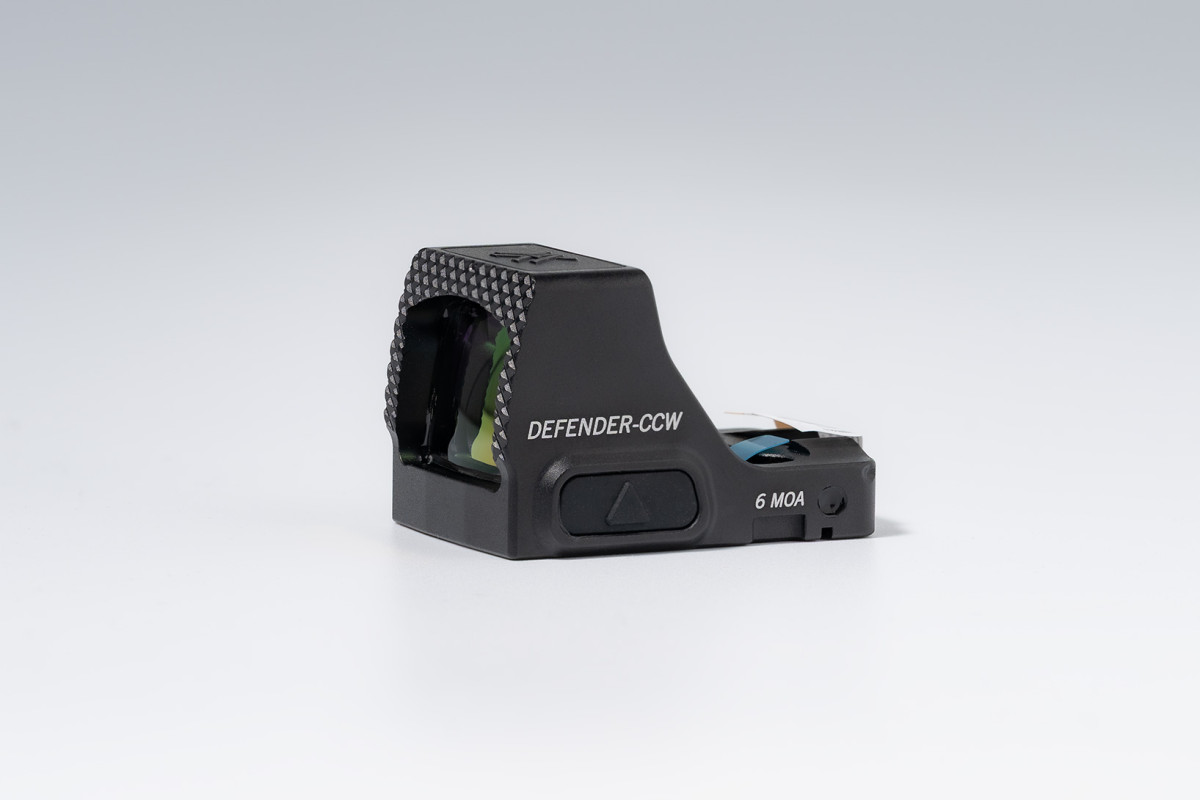

Ultra-Compact Red Dot Sight for Concealed Carry
Designed with modern discreet carry in mind, this ultra-slim reflex optic offers fast target acquisition in critical situations—without compromising concealability. Its compact footprint and lightweight design make it ideal for use on slimline pistols and micro-compact platforms, while still delivering robust performance you can rely on.
Technical Specifications
-
Magnification: 1x (true zero magnification for natural aiming)
-

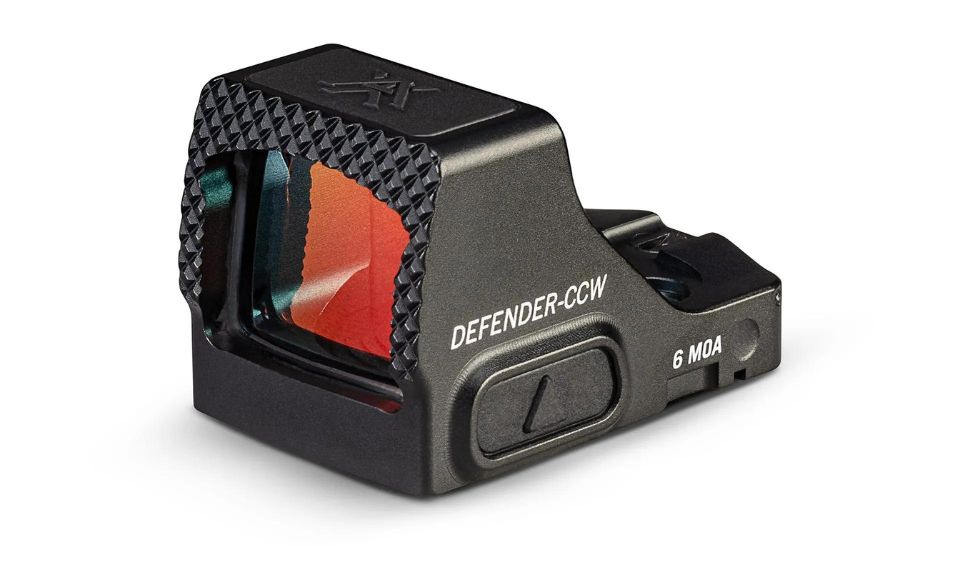

Reticle Options: 3 MOA or 6 MOA red dot
-
Dot Color: Bright red for high contrast visibility
-

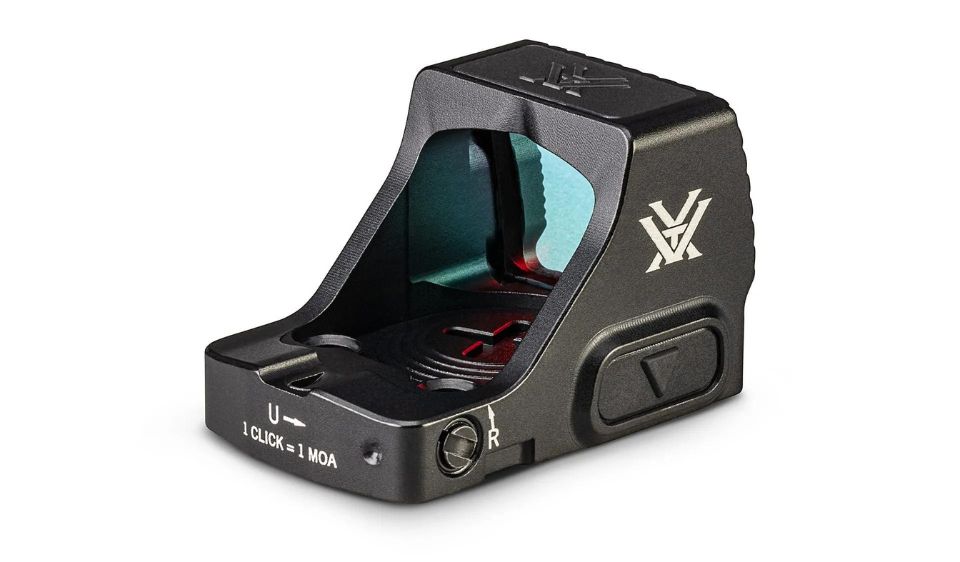

Adjustment Increments: 1 MOA per click
-
Windage/Elevation Adjustment Range: 105 MOA / 110 MOA
-
Parallax: Practically parallax-free at typical engagement distances
-
Eye Relief: Unlimited
-
Mounting Interface: Compatible with RMSc-style mounting patterns
-
Overall Length: 1.59 inches
-
Weight: 0.95 ounces
Performance & Features
-
Glass: Coated aspherical lens offers a crisp, distortion-free image
-
Brightness Settings: 10 levels total (8 for daytime, 2 night-vision compatible)
-
Motion Activation: Auto-wake feature activates the optic on movement
-
Auto-Shutoff: Powers down after 10 minutes of inactivity to conserve battery
-
Durability Enhancements: Shock-absorbing polymer insert protects the housing from impact
-
Textured Front Surface: Engineered for emergency slide racking against hard surfaces
-
Battery Access: Convenient top-loading battery compartment—no re-zero required
-
Weather Resistance: Waterproof and fog-resistant, sealed against the elements
-
Thermal Stability: Performs across wide temperature ranges without fogging or failure
-
Exterior Finish: Matte anodized coating reduces glare and resists corrosion
-
Chassis Construction: Machined from a single aluminum block for strength and minimal weight

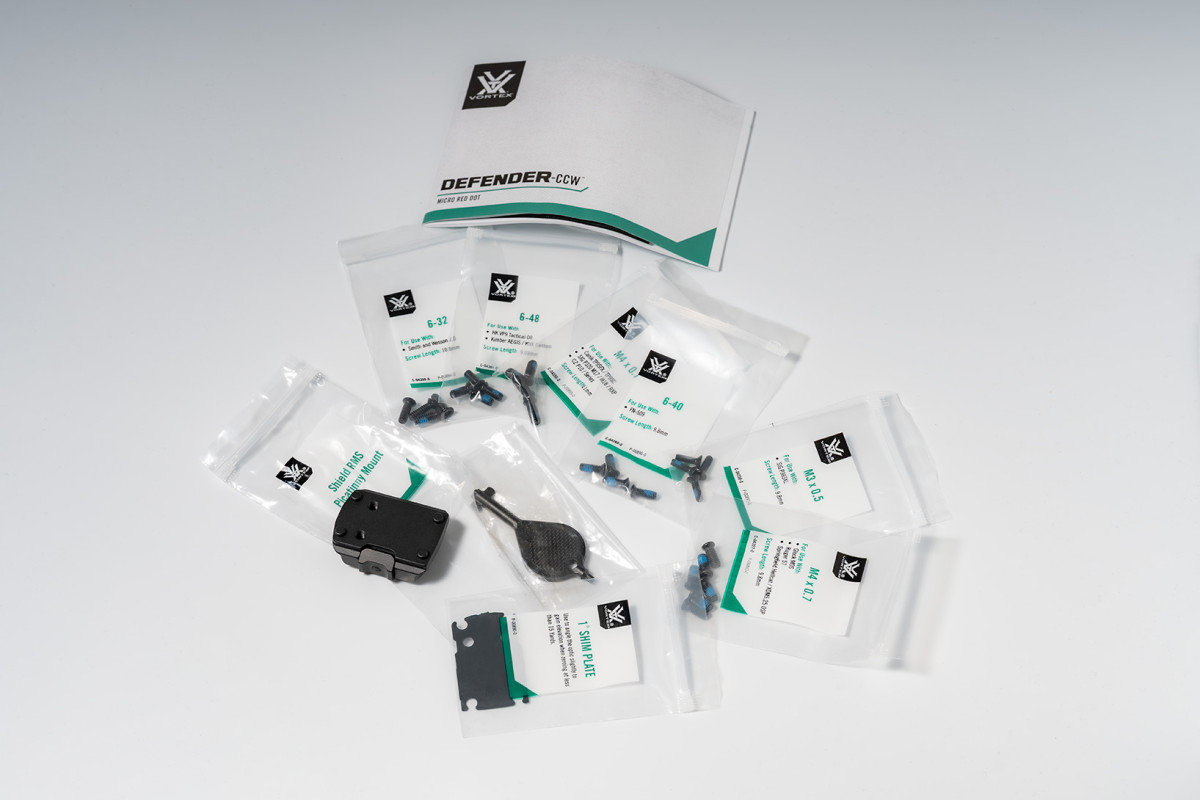

Included in the Package
-
1° shim plate for angled adjustment
-

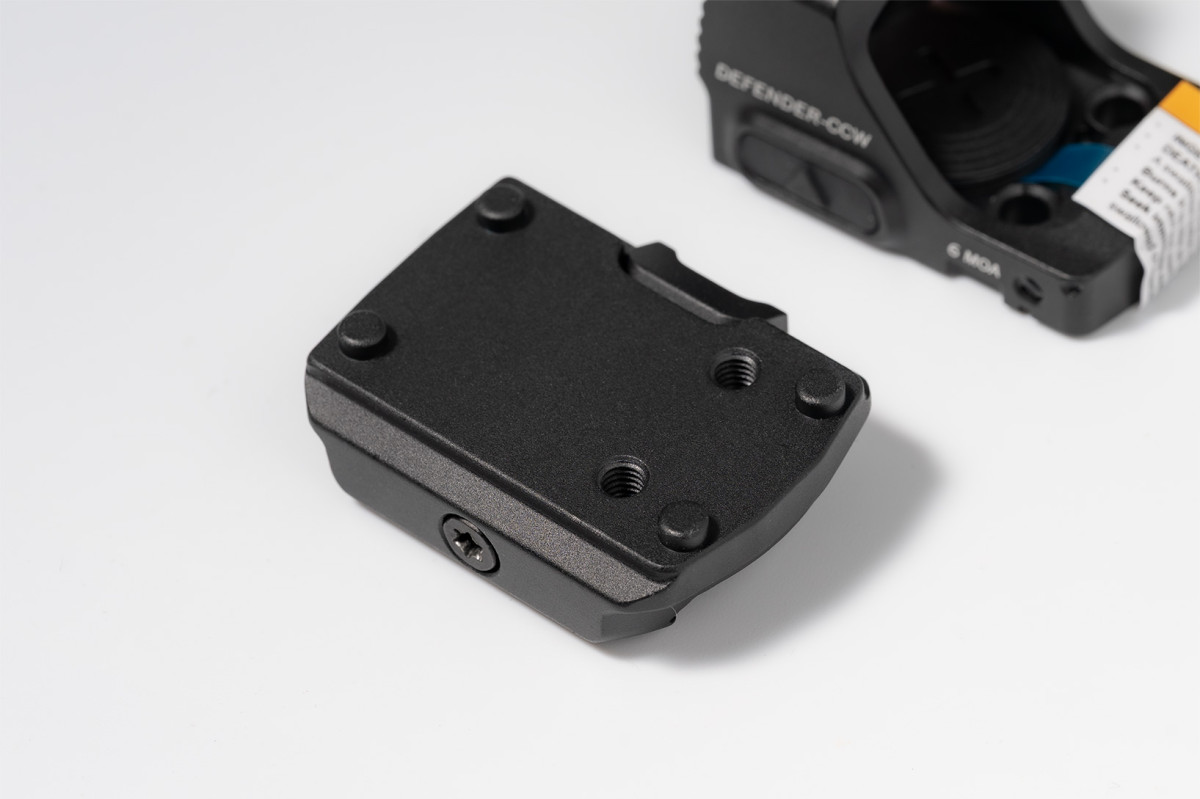

Mounting plate for standard rail systems
-
Protective rubber cover
-
Microfiber lens cloth
-
CR1632 lithium battery
-
Multi-purpose adjustment tool
-
Six sets of common mounting screws
